Dual 1080P Cameras
Built-in 1080P road camera with 120° view and 1080P cabin camera with 135° view.

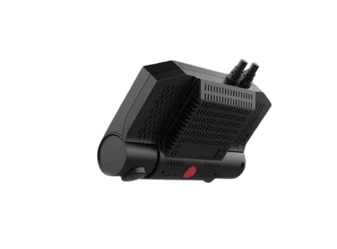

Mobile DVR

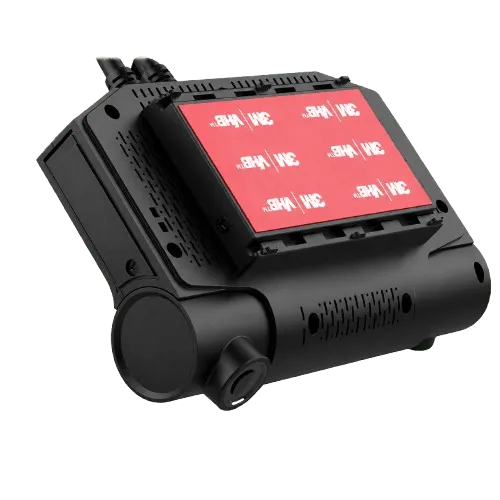

TQM-8102SP
Two views built in. Four channels when you need more.
2-CH 1080P 4G GPS WiFi Car DVR
A certified in-vehicle DVR with built-in road and cabin cameras, 4G live viewing, GPS, WiFi, protected dual-card storage and optional four-channel expansion.
TQM-8102SP
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Up to Four Channels
Add two external cameras for a total of four video channels.
4G Remote Live View
View vehicles remotely on iPad, iPhone, Android devices and PCs.
GPS & WiFi
Built-in GPS positioning and WiFi simplify tracking, local access and setup.
Protected Dual TF Storage
Two lock-protected TF card slots support up to 512GB total storage.
Platform Integration
Supports CMS, Wialon and SDK/API integration with third-party fleet software.
TQM-8102SP in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
A certified in-vehicle DVR with built-in road and cabin cameras, 4G live viewing, GPS, WiFi, protected dual-card storage and optional four-channel expansion.
Dual 1080P Cameras
The built-in road and cabin cameras record two 1080P views at once. Together they show the traffic ahead and activity inside the vehicle.
Up to Four Channels
Add two compatible external cameras to the two built-in views. A four-channel setup can also capture the rear or sides of the vehicle.
4G Remote Live View
The built-in 4G connection makes live camera feeds available to an authorized remote client. Fleet operators can check road and cabin conditions during a trip.
GPS & WiFi
GPS associates the recorded journey with location and route data. Built-in Wi-Fi supports local setup and access to footage near the vehicle.
Protected Dual TF Storage
Two TF card slots hold up to 512GB of recordings in total. The locking design helps prevent casual removal of stored video evidence.
Platform Integration
The DVR can work with compatible CMS and Wialon fleet systems. SDK and API options support integration into an existing monitoring workflow.
Built-in Speaker
The speaker announces device status and can play instructions sent from the server. Drivers receive useful prompts without checking the recorder display.
Fast Installation
The compact recorder mounts to a windscreen with the supplied adhesive. Installers can then connect power and any optional external cameras.
Video & Camera
ProcessorNovaTek high-performance processor
CompressionH.265
Front camera1080P, 120° wide view
Cabin camera1080P, 135° wide view
Expansion2 optional external channels; 4 channels total
OSDDate/time, vehicle ID, user ID and customizable information
Recording & Storage
Storage2 × TF cards; up to 512GB total
ProtectionSpecial lock protects recorded card data
RecordingFTP backup and mobile local MP4 recording
PlaybackMobile APP and PC; GPS track playback supported
Connectivity
Mobile4G FDD-LTE / WCDMA; TD-LTE/FDD-CTLTE optional
GPSBuilt in
WiFiAP mode by default; configuration and download supported
PlatformsCMS, Wialon, SDK and API integration
ClientsiPad, iPhone, Android and PC remote view
Interface & Alarm
SpeakerWorking status and server instruction prompts
IndicatorsGPS, REC, 4G, WiFi and SOS

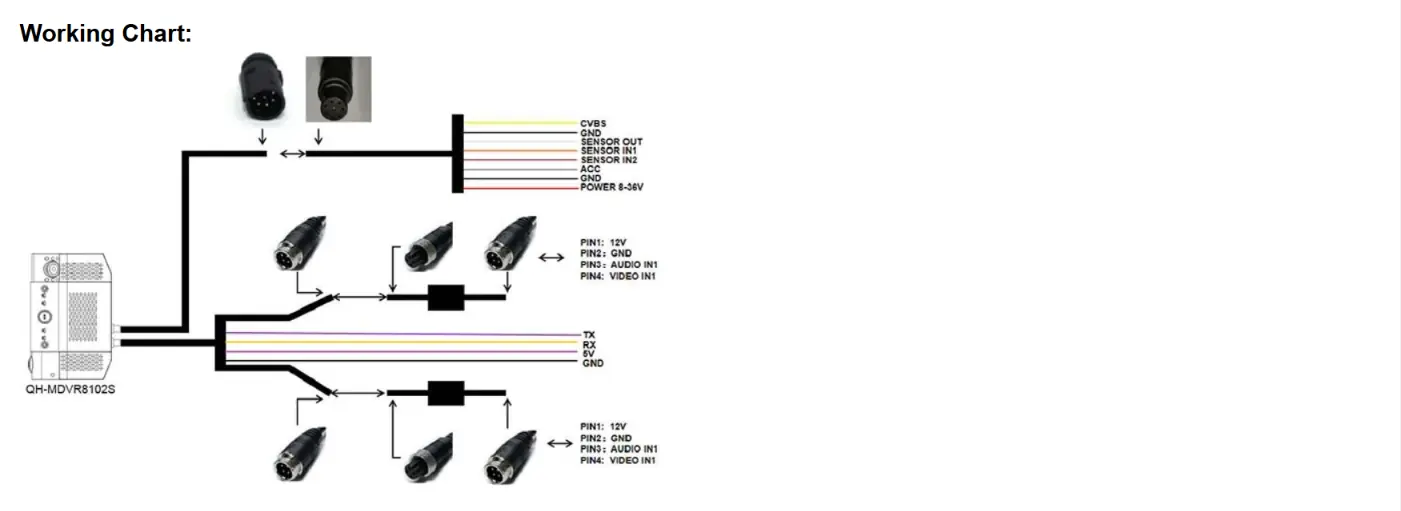

Power cable3-pin
Function cable3-pin; 2 × IO-IN, 1 × IO-OUT
Cameras4-pin aviation connectors
RS232Optional
AlarmSOS and collision events; optional picture/video upload
Power
Input voltage8–36VDC
Standby12V / 10mA
Collision wake-upAlarm and record within 10 seconds while in standby
Installation & Compliance
Mounting3M windscreen sticker
CertificationCE, FCC, EN50155 and more
LanguageChinese, English and customization
MOQFrom 1 unit
