8-Channel AHD Video Input
Eight AHD inputs bring multiple vehicle camera views into one recorder. Cover the road, cabin, doors, sides, and rear according to the installation.
MDVR
TQM-8204H
Eight-channel fleet surveillance with intelligent control.

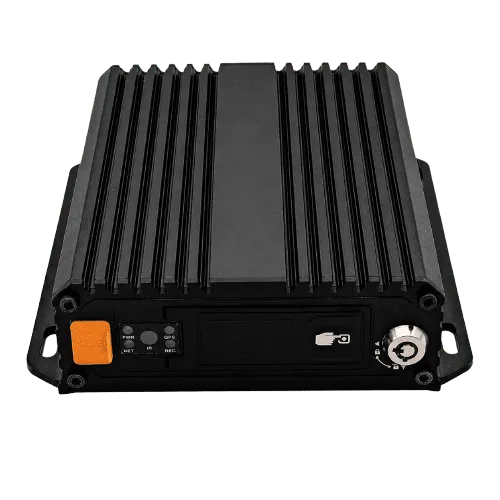

8CH AI Three SD Card 1080P Mobile DVR
Professional 8-channel 1080P mobile DVR with AI support, multi-camera recording, 4G connectivity, GPS positioning and secure vehicle-grade storage.
TQM-8204H
Product details
Built for the way your fleet works.
Professional 8-channel 1080P mobile DVR with AI support, multi-camera recording, 4G connectivity, GPS positioning and secure vehicle-grade storage.
1080P Multi-Camera Recording
Record clear 1080P video from connected cameras for incident review. Synchronized channels help reconstruct events around the vehicle.
4G LTE Connectivity
A configured 4G connection carries live video and fleet data to the monitoring platform. Supervisors can inspect events while a vehicle is on route.
Dual-Band Wi-Fi Support
Support for 2.4 GHz and 5.8 GHz Wi-Fi provides flexible wireless access. Use it for local configuration or transferring recordings where supported.
GPS / BeiDou Positioning
Satellite positioning links the footage to a route and vehicle location. The fleet team can examine where a recorded event occurred.
Secure Vehicle-Grade Storage
The vehicle-ready storage bay protects recorded footage during everyday operation. Supported SD or TF backup storage adds a second recording path.
Built-in G-Sensor
The built-in sensor registers harsh braking, sharp turns, and impacts. These driving events can be matched with the corresponding camera footage.
8-36V Wide Voltage Input
The 8–36V input accommodates common commercial vehicle electrical systems. Power protection helps keep recording stable through normal vehicle use.
System & Video
Operating SystemEmbedded Linux
ProcessorHigh-performance HiSilicon
Video Inputs8 channels AHD
Audio Inputs8 synchronized audio channels
CompressionH.265 / H.264
Video OutputVGA and AV / CVBS
Storage & Data Protection
HDD / SSDStandard 2.5-inch SATA bay
SD / TFBackup or mirror storage support
Anti-Theft LockMechanical storage lock
File ProtectionEncrypted data system
Connectivity & Positioning
4G LTELive video streaming and cloud uploads
Wi-Fi2.4GHz / 5.8GHz
GPS / BDSHigh-sensitivity positioning
Power & Protection
Input VoltageDC 8-36V
Power ProtectionShort-circuit, overload and reverse-polarity protection
UPS Delay ShutdownSuper-capacitor protection after ignition off
ConnectorsShockproof aviation connectors
Sensors & Environment
G-SensorHarsh braking, sharp turns and collision detection
Working Temperature-20°C to +70°C
