GPS + LBS Positioning
Fast and dependable location awareness for everyday fleet use.

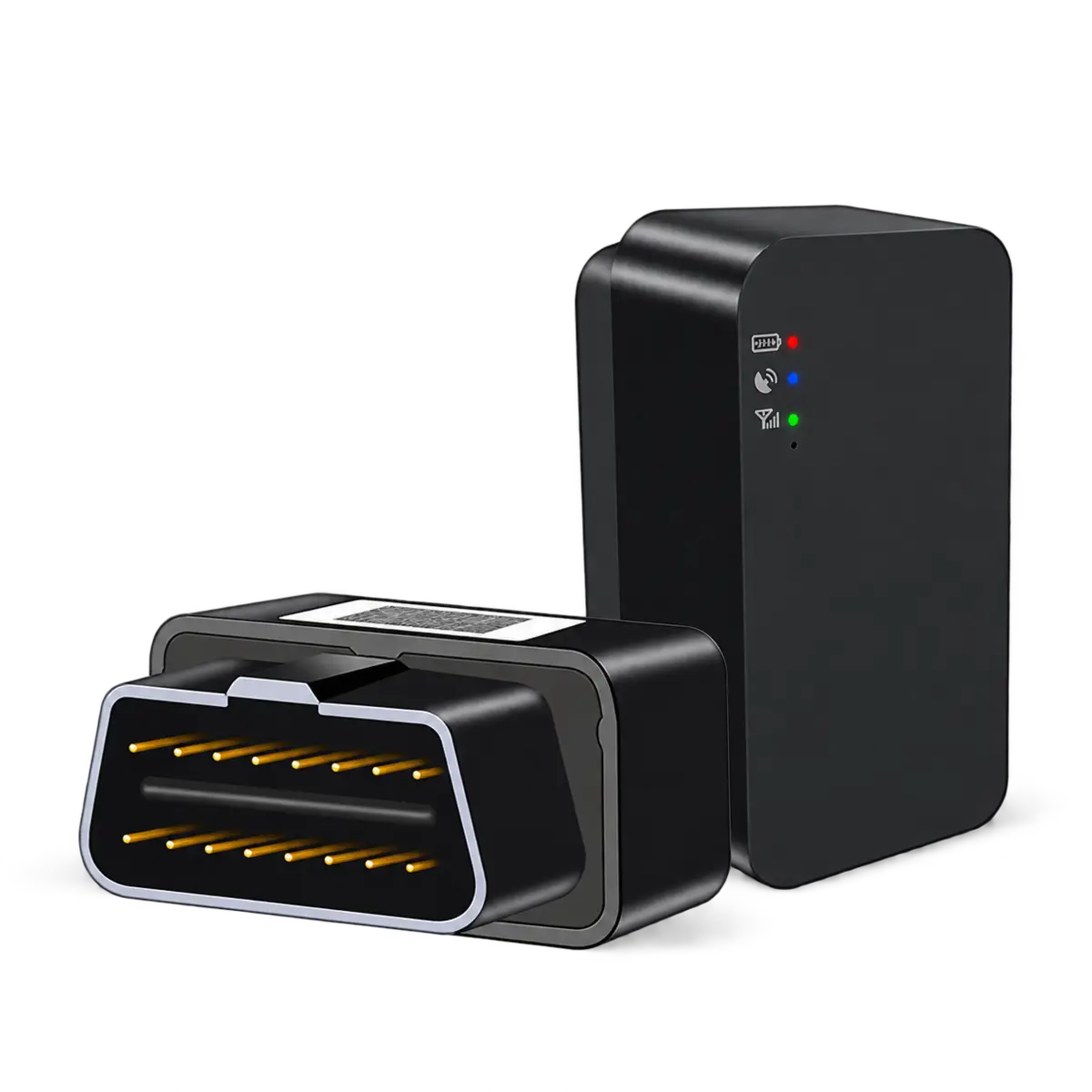

Plug & Play Vehicle Tracker
OB22
Plug in and put vehicle visibility to work.
Plug & Play OBD GPS Tracker
An easy-to-install OBD port tracker with dependable location, reporting, logging and security capabilities for leased vehicles and large fleets.
OB22
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Plug & Play Installation
Connect directly to the standard OBDII socket.
Unplug Alert
Know when the tracker is removed unexpectedly.
Ignition Detection
Monitor vehicle ignition activity through external power voltage.
Multiple Alerts
Stay informed about movement, overspeed, geo-fence and power events.
Compact Design
A small, discreet enclosure fits neatly at the OBDII port.
Product details
Built for the way your fleet works.
An easy-to-install OBD port tracker with dependable location, reporting, logging and security capabilities for leased vehicles and large fleets.
GPS + LBS Positioning
GPS and LBS help pinpoint the vehicle location accurately and rapidly.
Compact Size
A compact form factor smaller than a typical payment card is easy to carry and discreetly install.
Effortless Installation
Simply connect the tracker to the OBDII socket without complex wiring or specialist installation.
Unplug Alert
Get notified when the device is unexpectedly removed from the OBDII port.
Ignition Detection
Keep informed of vehicle ignition and ACC status.
Multiple Alerts
Receive alerts for sudden speed changes, sharp turns, speeding and other typical events.
GNSS
Positioning systemGPS, GLONASS, GALILEO
FrequencyL1
Positioning accuracy<2.5m CEP
Tracking sensitivity-165dBm
Acquisition sensitivity-148dBm
TTFF (open sky)Average hot start ≤1sec; average cold start ≤32sec
Cellular
Communication networkGSM
FrequencyDual-band 900/1800 and dual-band 850/1900MHz
Power
Battery50mAh / 3.7V industrial-grade Li-Polymer battery
Input voltage9-36VDC
Interface
ConnectorOBDII port
SIMNano-SIM
Data storage32+32Mb
Physical Specification
Dimensions45.0 × 22.5 × 30.0mm
Weight30g
Operating Environment
Operating temperature-20°C to +70°C
Operating humidity5% to 95%, non-condensing
Feature
Voice monitoring range≤5 meters
SensorsAccelerometer
Ignition detectionExternal power voltage
ScenariosVehicle movement, overspeed, geo-fence, voice monitoring, vehicle battery detection and power supply disconnection alerts
OB22 BrochureBrochure coming soon
